4800 Series Torque Window



  • The 4800 Series RV torque window is designed for a modern automotive look and ultimate practicality.  It is a torque or “awning” window that can stand alone or be used to complement other window styles in your vehicle.
  • A great looking "flush" exterior. The outstanding appearance of this window enhances any vehicles style.
  • Choose from a vast range of vent and stationary configurations that fit the style and functional needs of your vehicles.
  • Full width, all glass vents (no banding or frame) provide maximum ventilation and a very clean look.
  • Torque operators are located at the bottom center of the window. Standard on the 4800 is a unique operator with a tuck-away handle.
  • The number of vent panels is variable, according to your needs and window size requirements.
  • Custom tempered clear or tinted safety glass.
  • Frame finishes that are mar-resistant and long lasting. The aluminum frame's standard coating is a baked-on, black flexible paint. The clamp ring, using the same tough coating, provides a complete and finished look. Only available in Black.
  • Clamp ring mounts to fit a variety of wall thicknesses.Since it does not mount with screws on the vehicle's exterior, the window has clean, smooth lines.
  • Many egress models to choose from. Egress handles are painted red and placed in easy to reach locations.
  • Standard glazing is gray safety glass. Other glazing options are available.

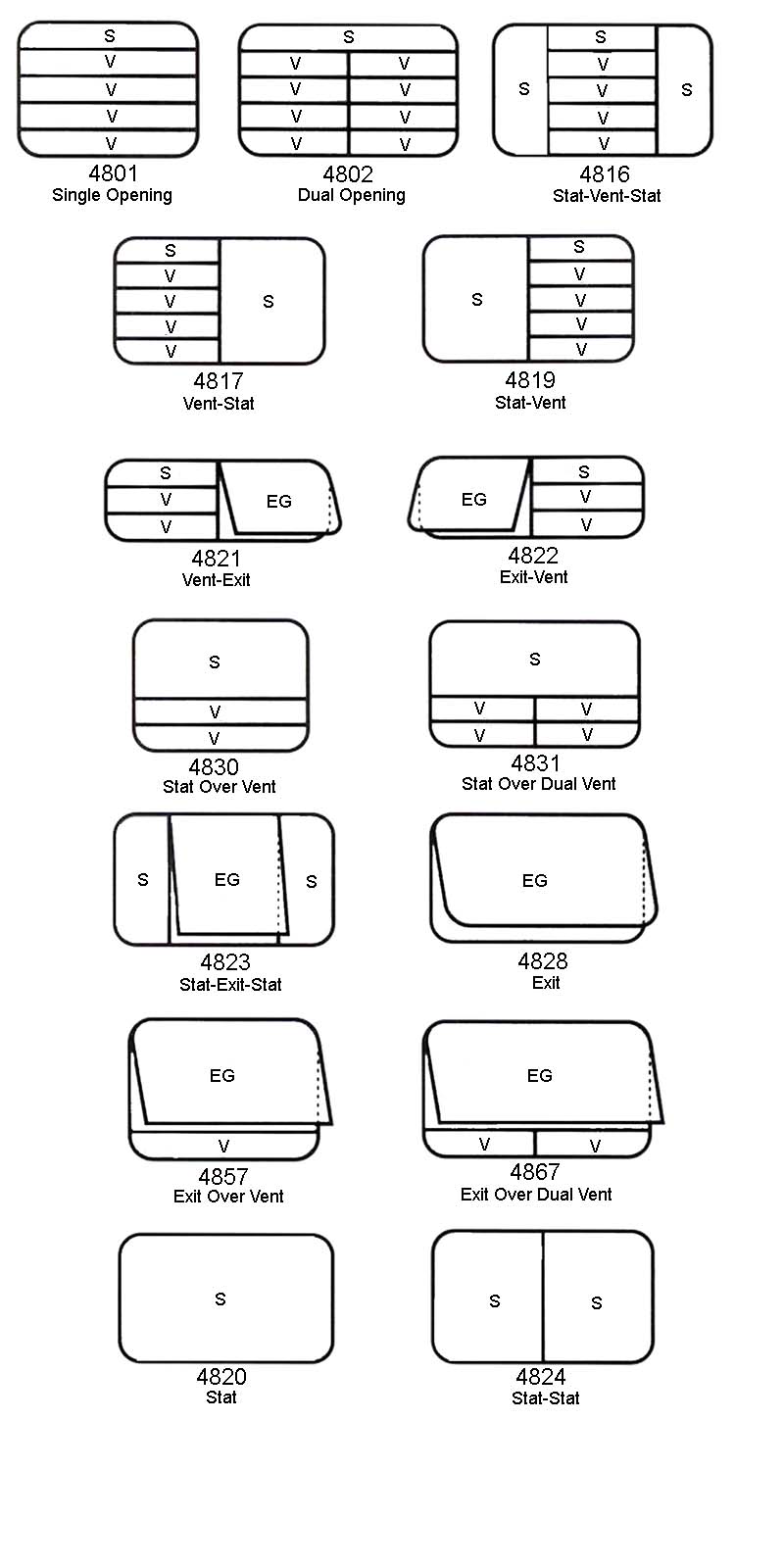

  • All windows are shown from outside view.
  • Window radius is 3-3/16"

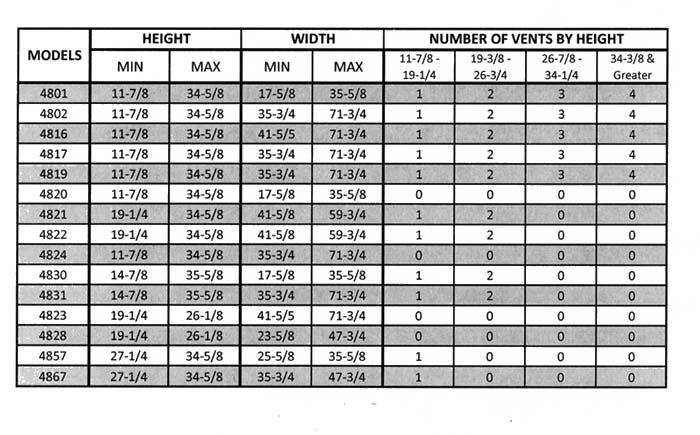

  • Rough hole opening size is 3/8" larger than actual window size. Grid below is actual window size.
  • V= Vent       E=Emergency Exit (Egress)   S=Stationary

***UPDATE- Min. Width Must Be 25-7/8" For 4828***
