6900 Series - DISCONTIUNED SERIES

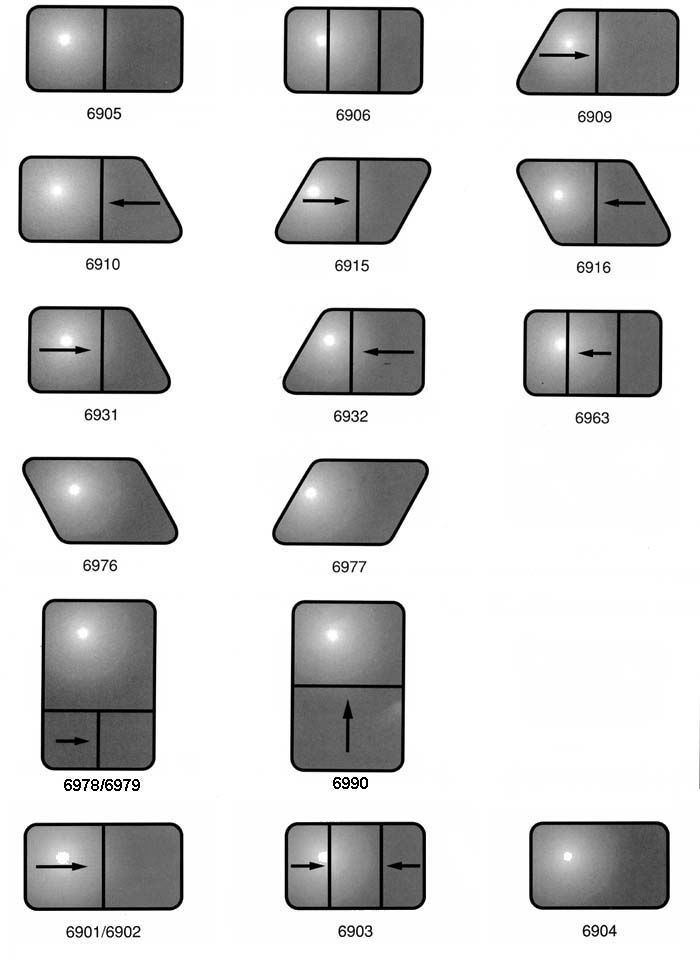

ONLY SELECT STYLES CAN BE PRODUCED - NEED EXISTING PART NUMBER
The 6900 series is a sturdy bay window or vista bay window for van conversions, built to withstand the rigors of usage, weather, city driving and the open road. It is contoured to fit van manufacturer specifications.
-
A radius corner window with horizontal and vertical sliding lites that ride on a smooth, continuous vinyl track.
-
Interlocking latches adds security to the vehicle, with the tight seal it creates keeps out wind noise, road noise and the weather
-
The vista bay provides maximum light for full size van conversions. All 6900 series sliding vents are frameless, providing a clearer, wider view when sliding panels are in open position.
-
Clamp ring installation allows a smooth, aerodynamic look on the window's exterior. Clamp rings to fit a variety of wall thicknesses.
-
Glazed with safety glass, available in clear or a variety of tints.
-
Sliding screens, which are included, are removable for easy cleaning and re-screening.
-
Clamp rings, frame and screen frame come in a matching baked on black or white finish.
-
Aluminum extruded back frame is contoured to van manufacturer specifications.
-
Large vista bay windows provide maximum light for full size van conversions.
-
Rough Hole size is 3/8" larger than actual window size.
-
Vista Bay windows have a contour of 117" radius.
-
Radius corner is 4"
